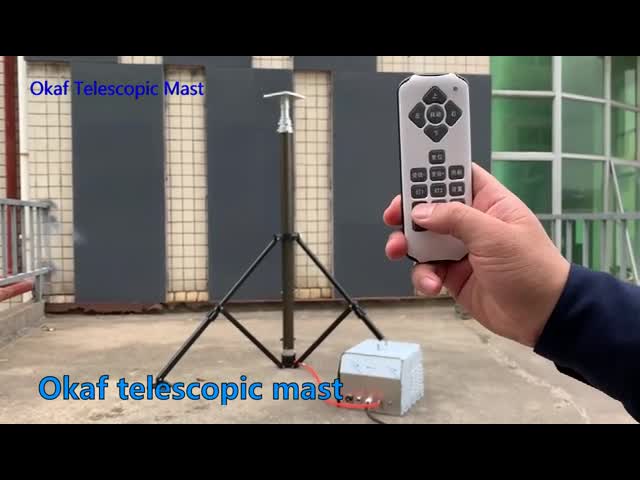

3-18Meter Telescopic Light Mast Mobile Pneumatic Mast For Camera
Product description:
Our pneumatic telescopic mast mast lifter is also a rack height equipment carrier, suitable for car, ship and land. It can elevate communications antenna, illumination, lightning shielding, optical transmission and camera equipment to a predetermined height quickly, reliably and securely. After the work is completed, it is also able to reduce the above-mentioned equipment to a predetermined height quickly, reliably and safely. Our company's pneumatic telescopic mast lifter is made of high-strength aluminum alloy, with the advantage of corrosion-resistant, light weight, large load, low noise, fast lift, small shock resistance, stable and so on. It could meet different areas, different occasions on the height and load requirements, in addition, it is also widely used in golf, large football night lighting, etc.
| Environmental adaptability | |
| Items | Test condition |
| Anti-wind capability | Level 8 wind: work normally; level 12 wind: can not be destroyed (working condition, nailed into the ground, 3-4 guy wires, pull angle: 30-40 degrees, the guy wire is tight).GJB74A-1998 3.13.13 |
| Low tempertaure storage | -55° |
| Low tempertaure working | -40° |
| high temperature storage | 70° |
| high-temperature working | 55° |
| Humidity | less than 90%(temperature 25°) |
| Exposed to the rain | Strength 6mm/min, the time of duration is 1 hour |
| Antiseptic | Refer to GJB150.11A-2009 Standard test |
| Dust-proof | Refer to GJB150.12.1986 Standard test |
| Solar radiation | Refer to GJB150.7.1986 Standard test |
| Mould | Refer to GJB150.2.1986 the second chapter standard inspection. Mildew-growing level: level 1 |
| Operating | Pneumatic Mast |
| Level of rotation speed | 6r/min |
| Vertical of rotation speed | 66Km/h |
| Control way | RS485,Pelco-D/P agreement,remote control |
| Material | aluminium alloy |
| weight capacity | 10 KG |
| Voltage | DC12V-15A |
| Security | Self-locking at any height; would not fall at any time |
